Remote monitoring system

Full industrial design project: research, concept, and development of a remote monitoring device for cathodic protection in pipelines and metal structures, reducing the need for on-site inspections.

As lead industrial designer, I developed a compact, durable enclosure tailored for outdoor performance and streamlined for mass production. The design balanced technical precision with manufacturability, ensuring seamless integration, protection, and scalability. This design background informs every render I make.

Services: Industrial design · Design for manufacturing

Client: Oil and gas technology company

Timeline: 2018 – 2019

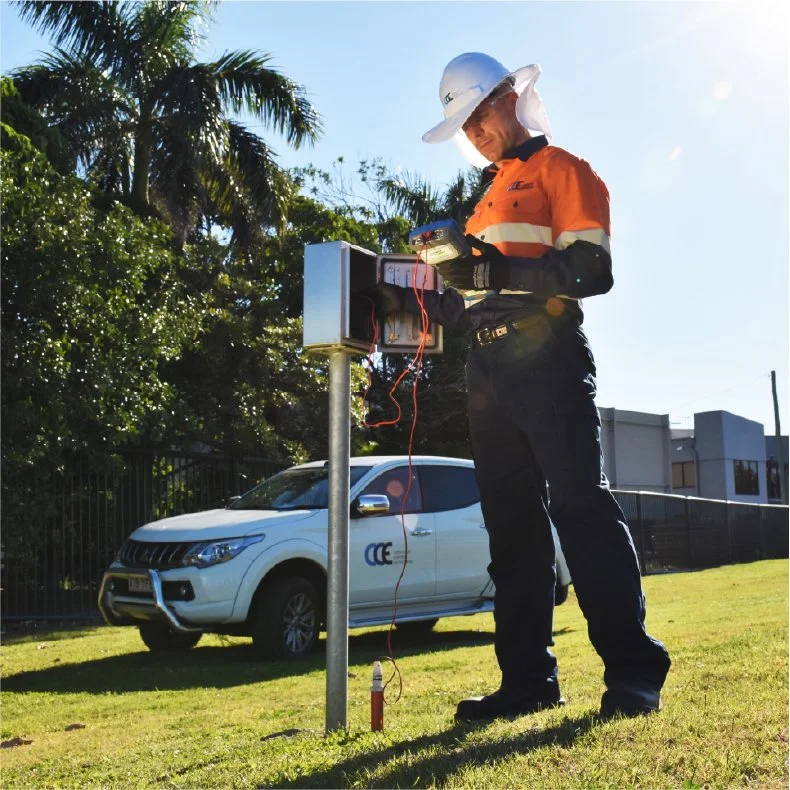

Cathodic protection test station marking a gas pipelineField operator inspecting the device next to a service vehicle

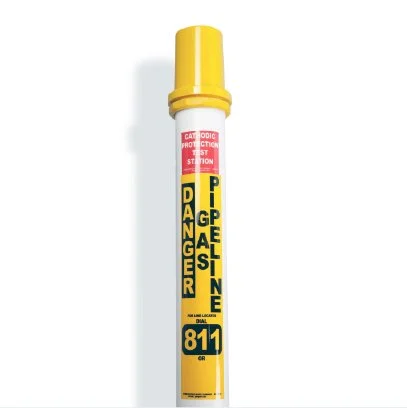

Constant monitoring of pipelines protection · Personnel in the field collecting asynchronous samples · Big Fink test point type as main reference for the design

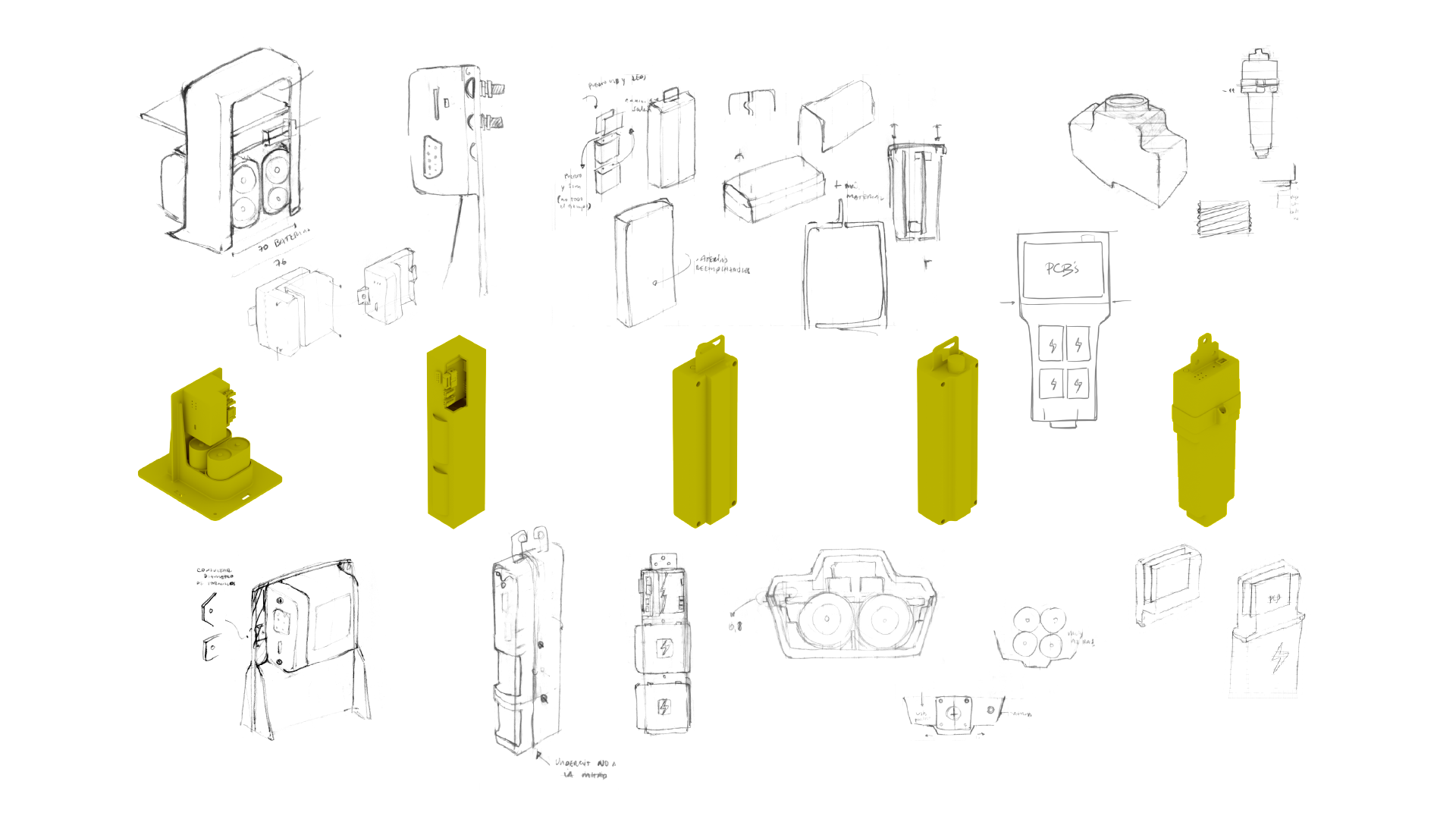

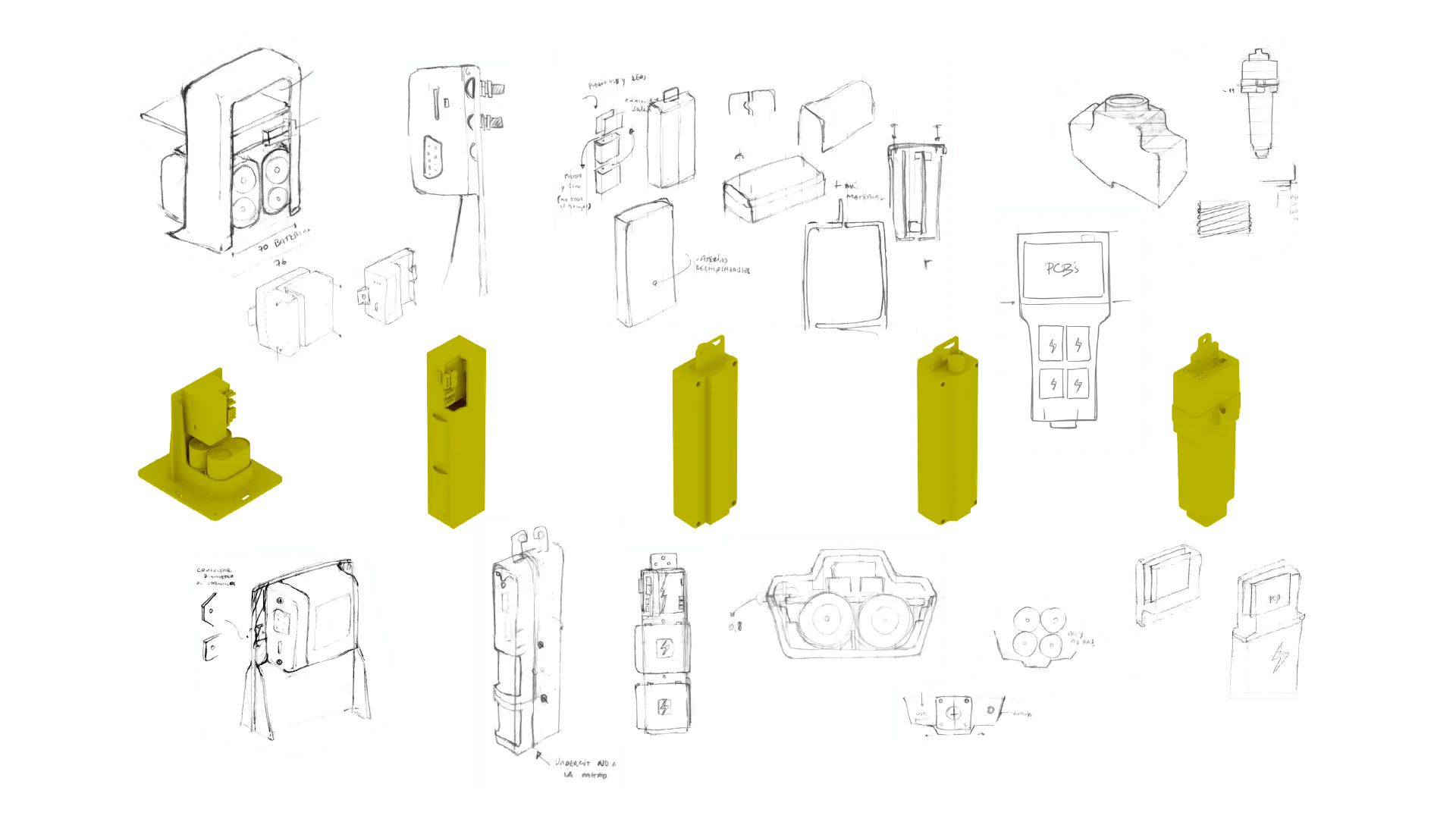

Enclosure concept sketches and component breakdown

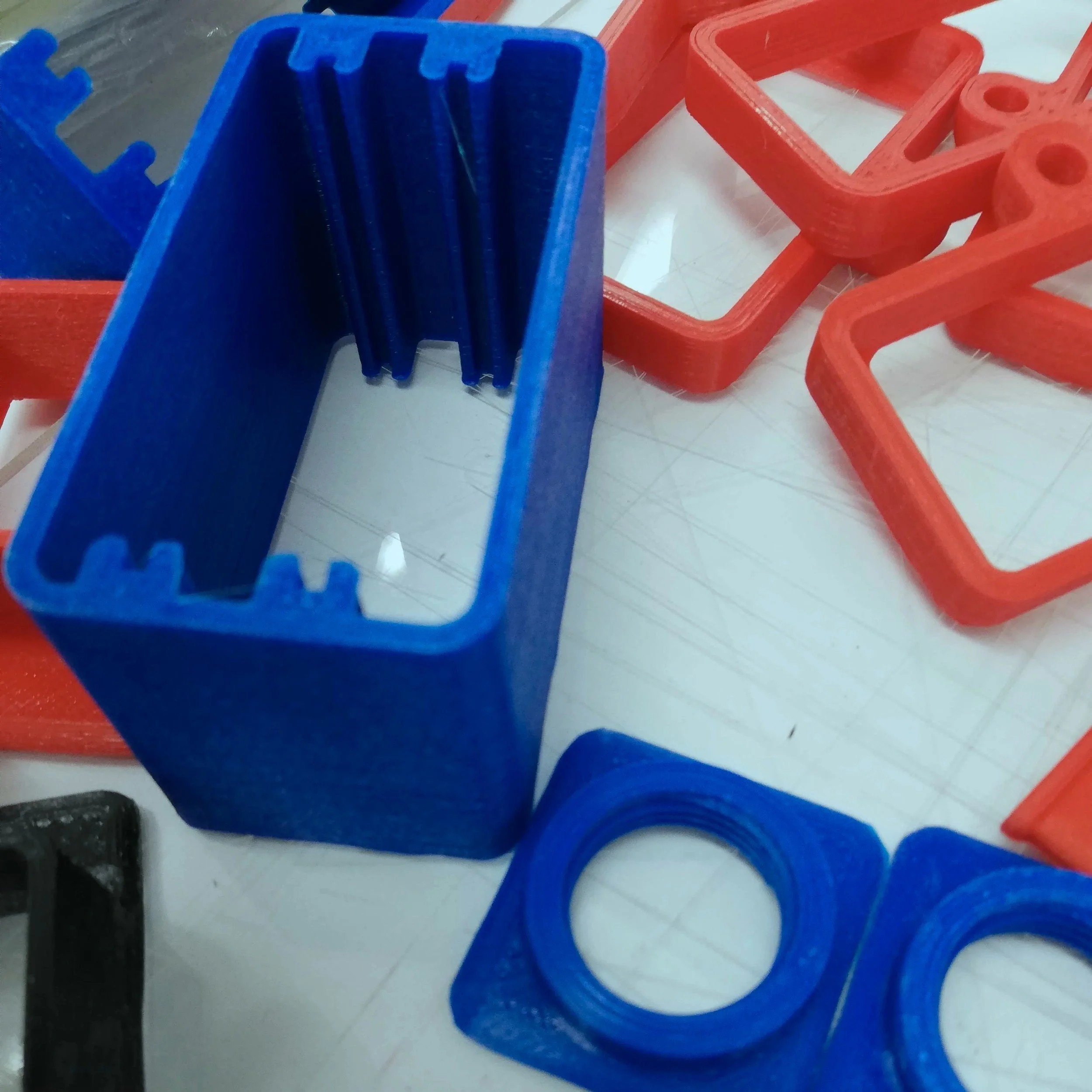

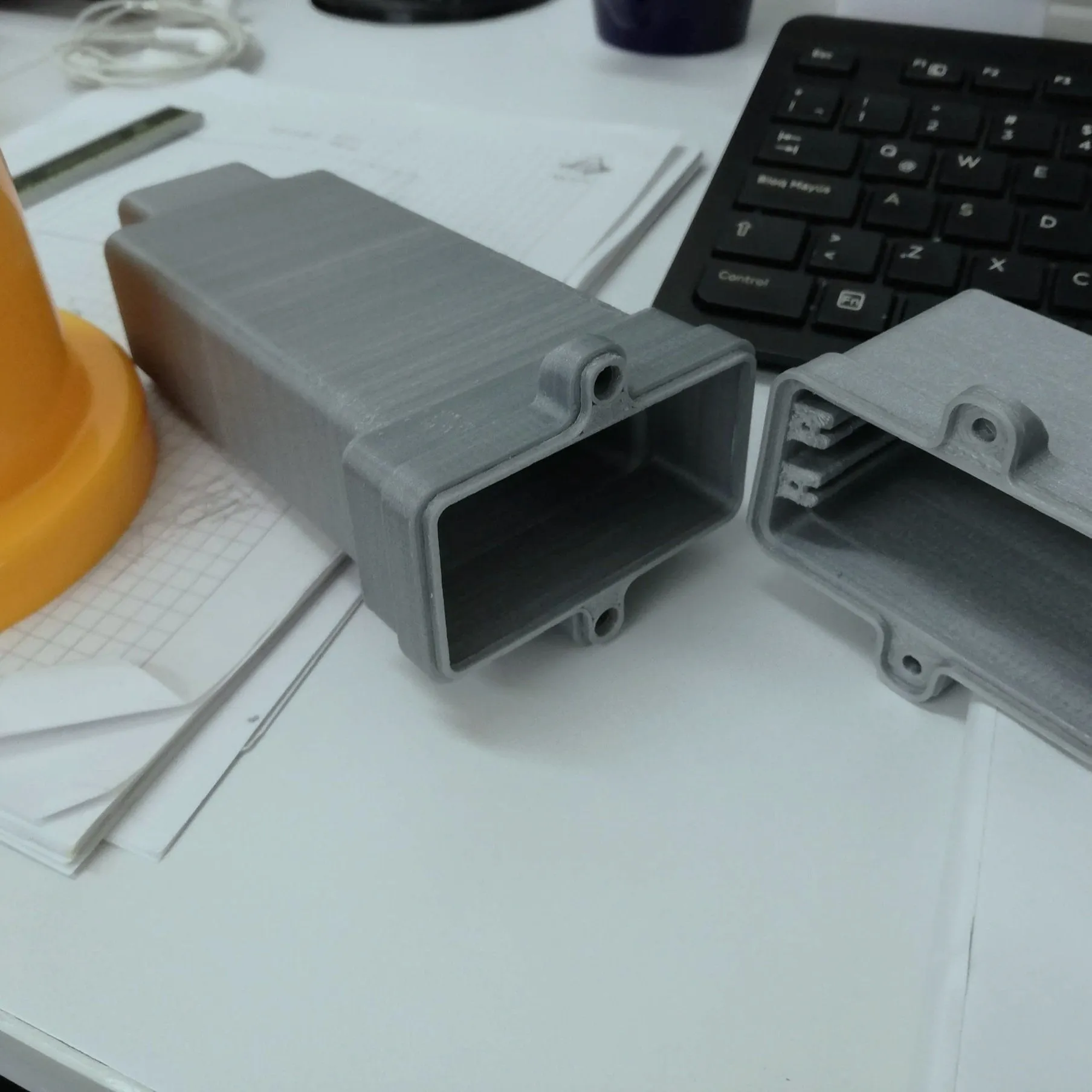

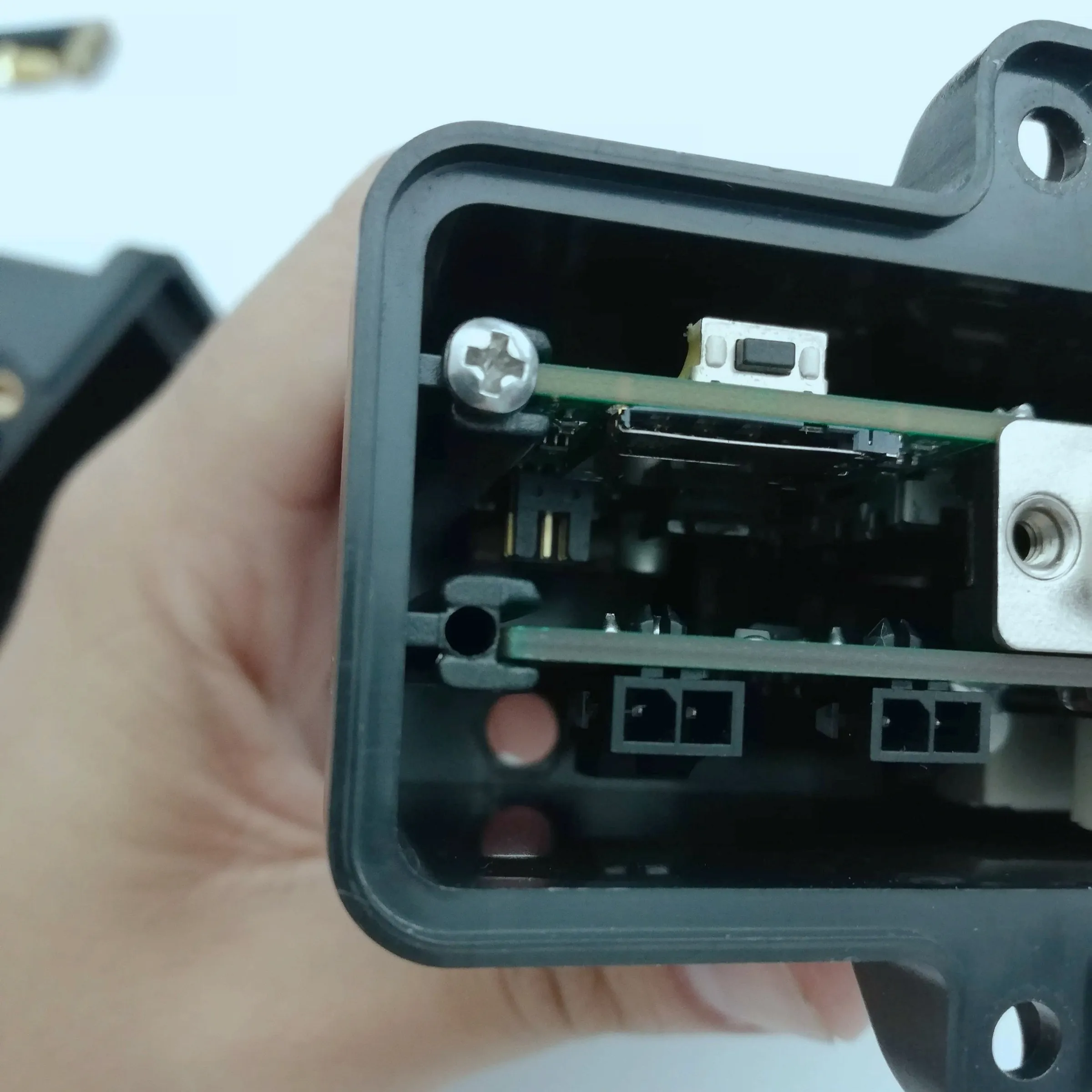

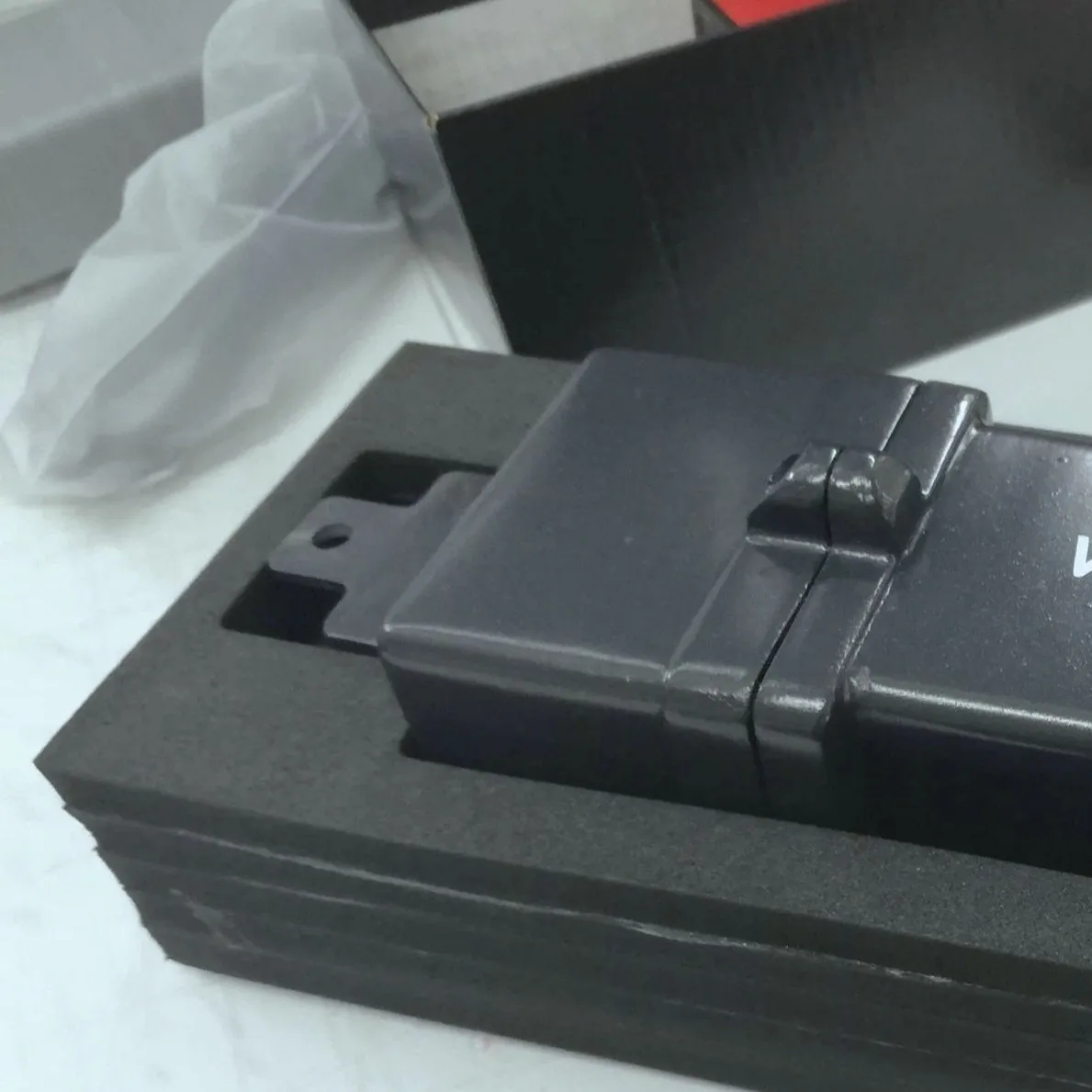

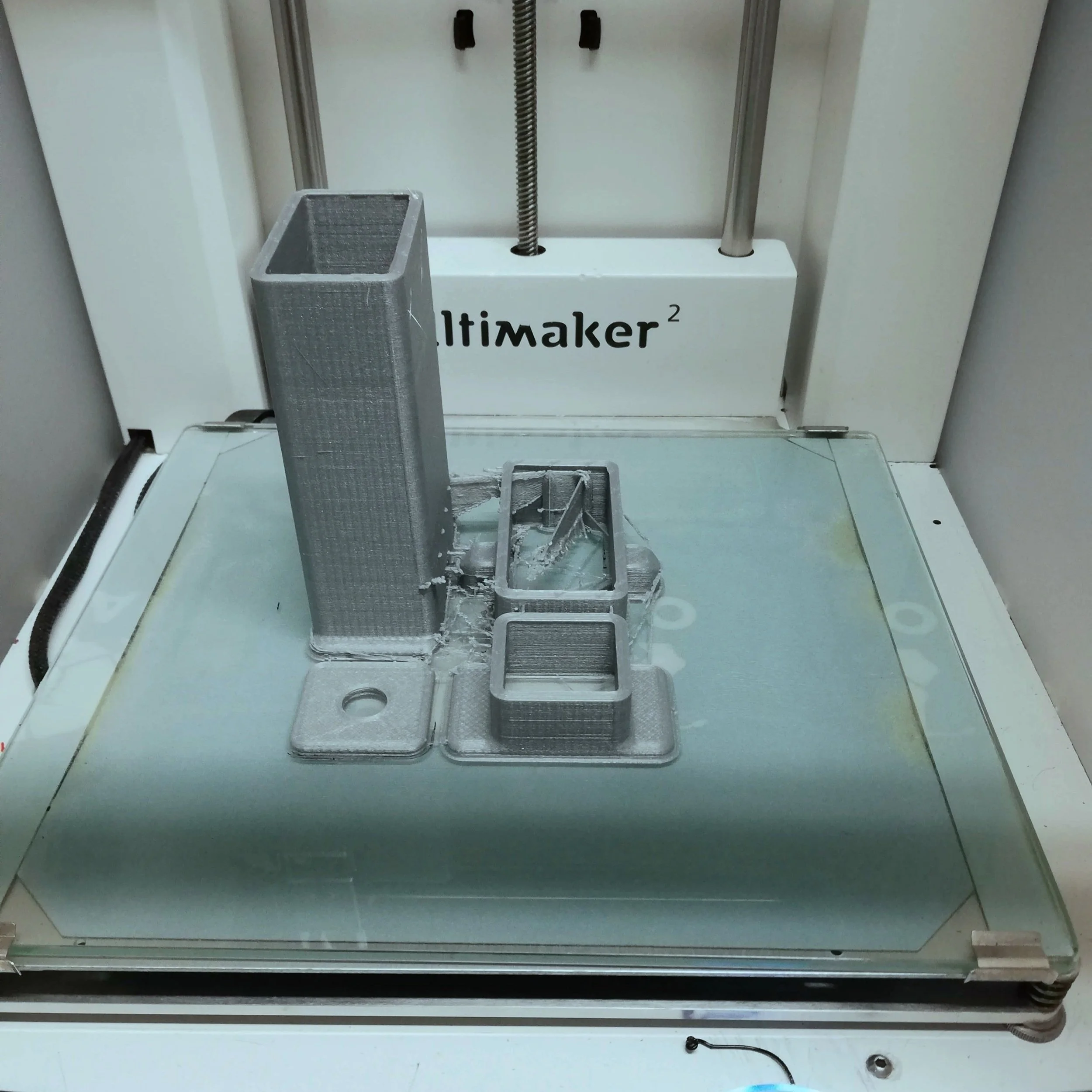

3D-printed enclosure components produced on an Ultimaker printerAssembled prototype enclosure with packaging foam3D-printed internal structural partsGrey 3D-printed enclosure prototypes on workbenchOpen prototype enclosure held in hand showing internal electronics
Dimensional accuracy, proportion refinement, packaging validation, and assembly testing.

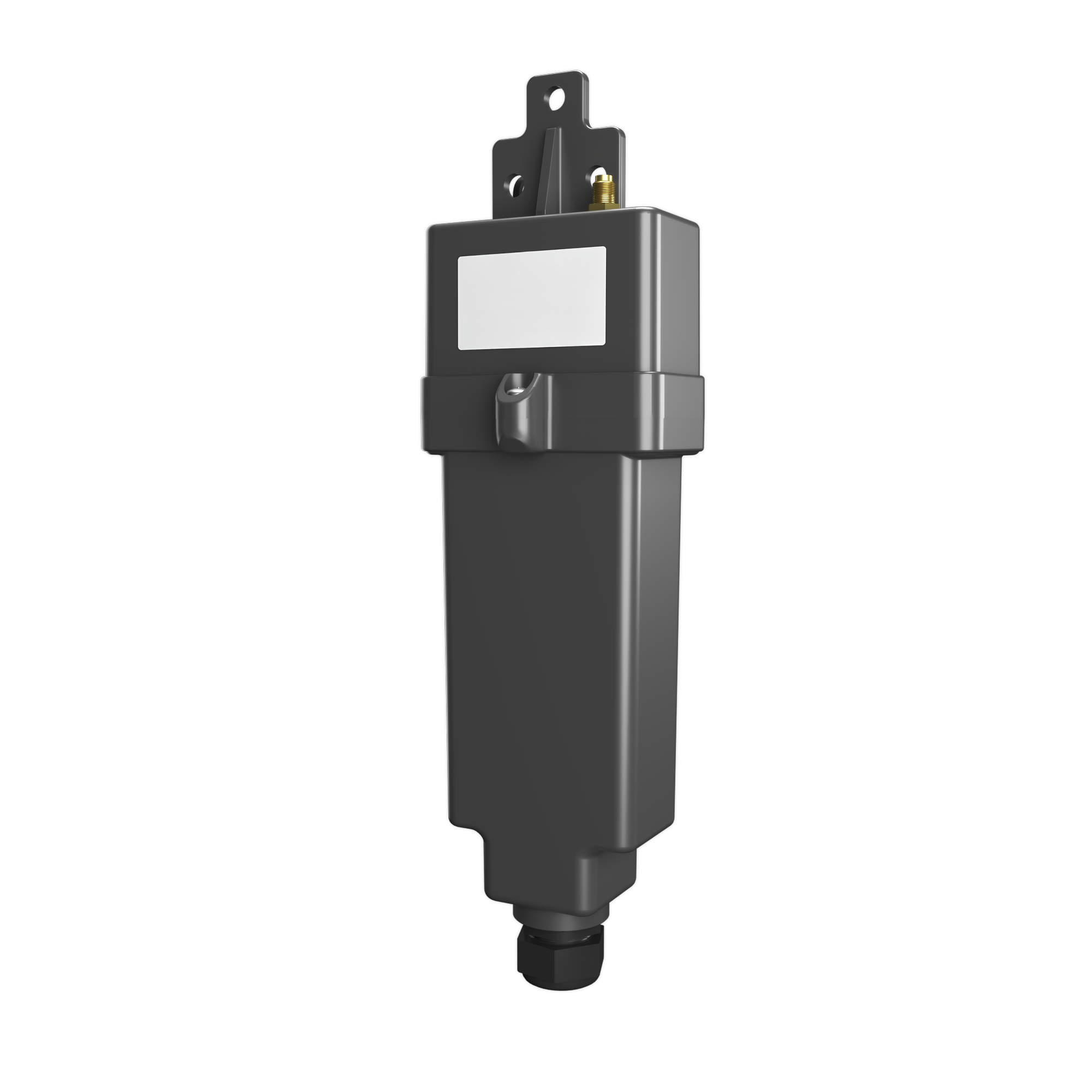

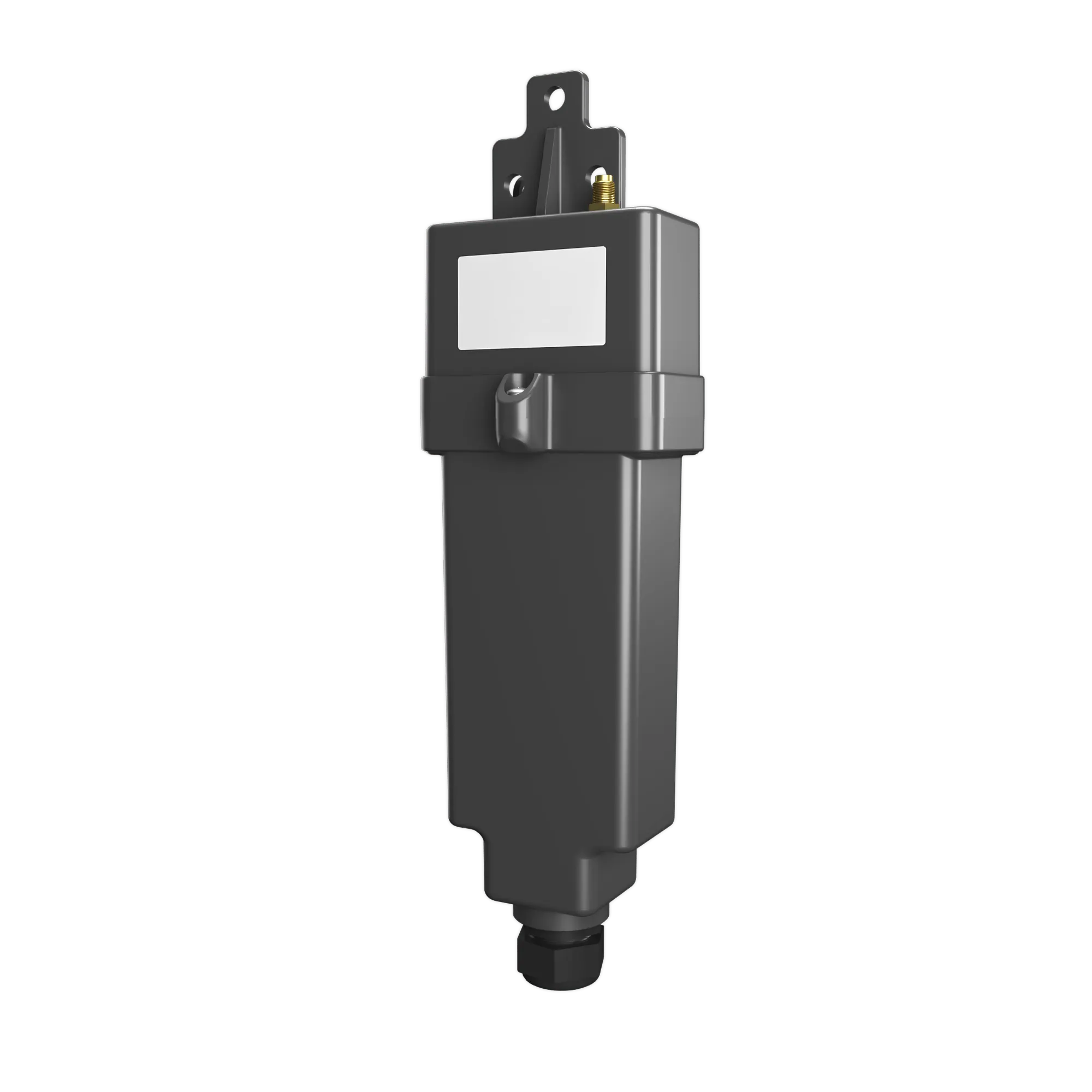

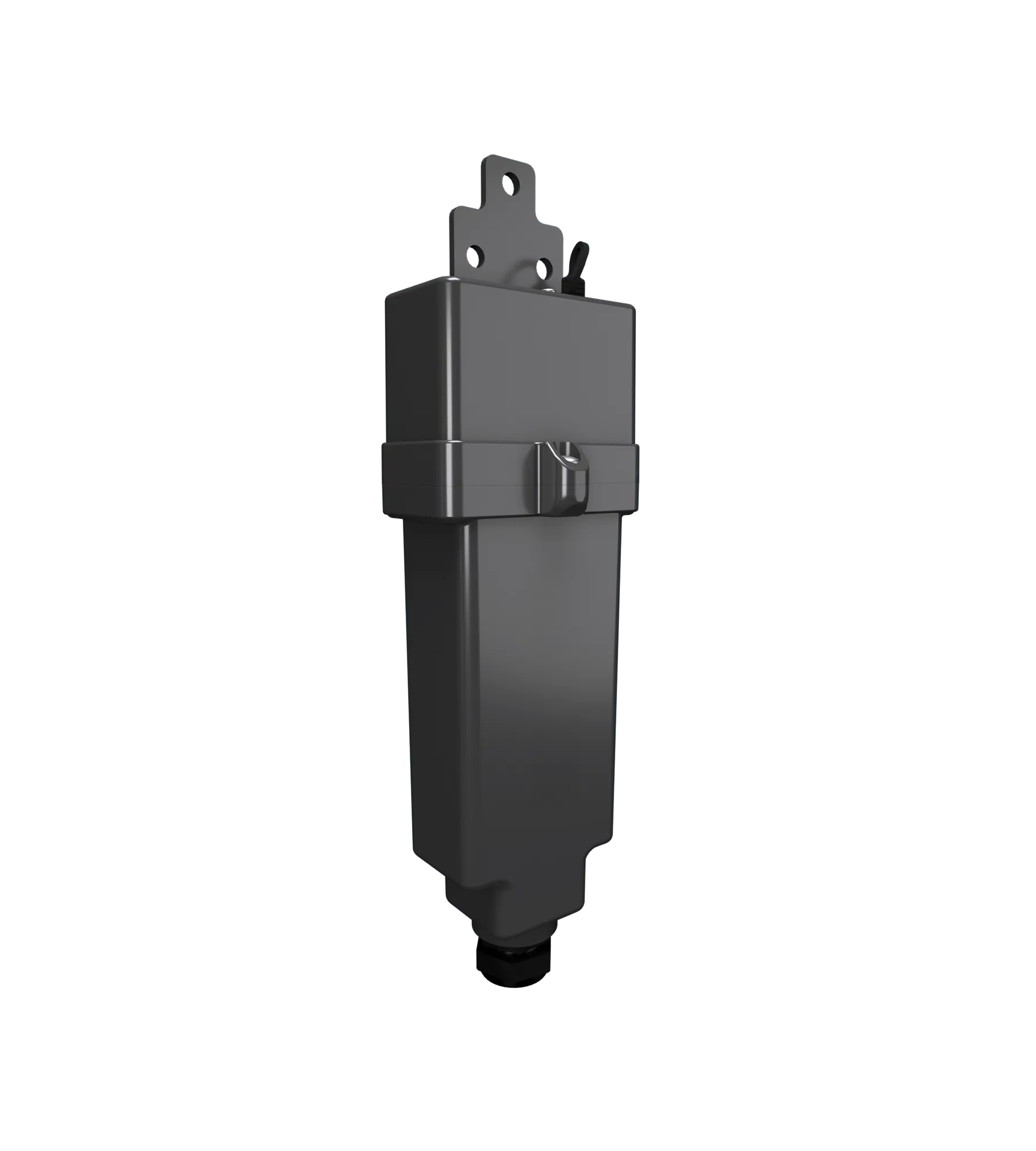

Final enclosure render — three-quarter viewFinal enclosure render — front face with label area

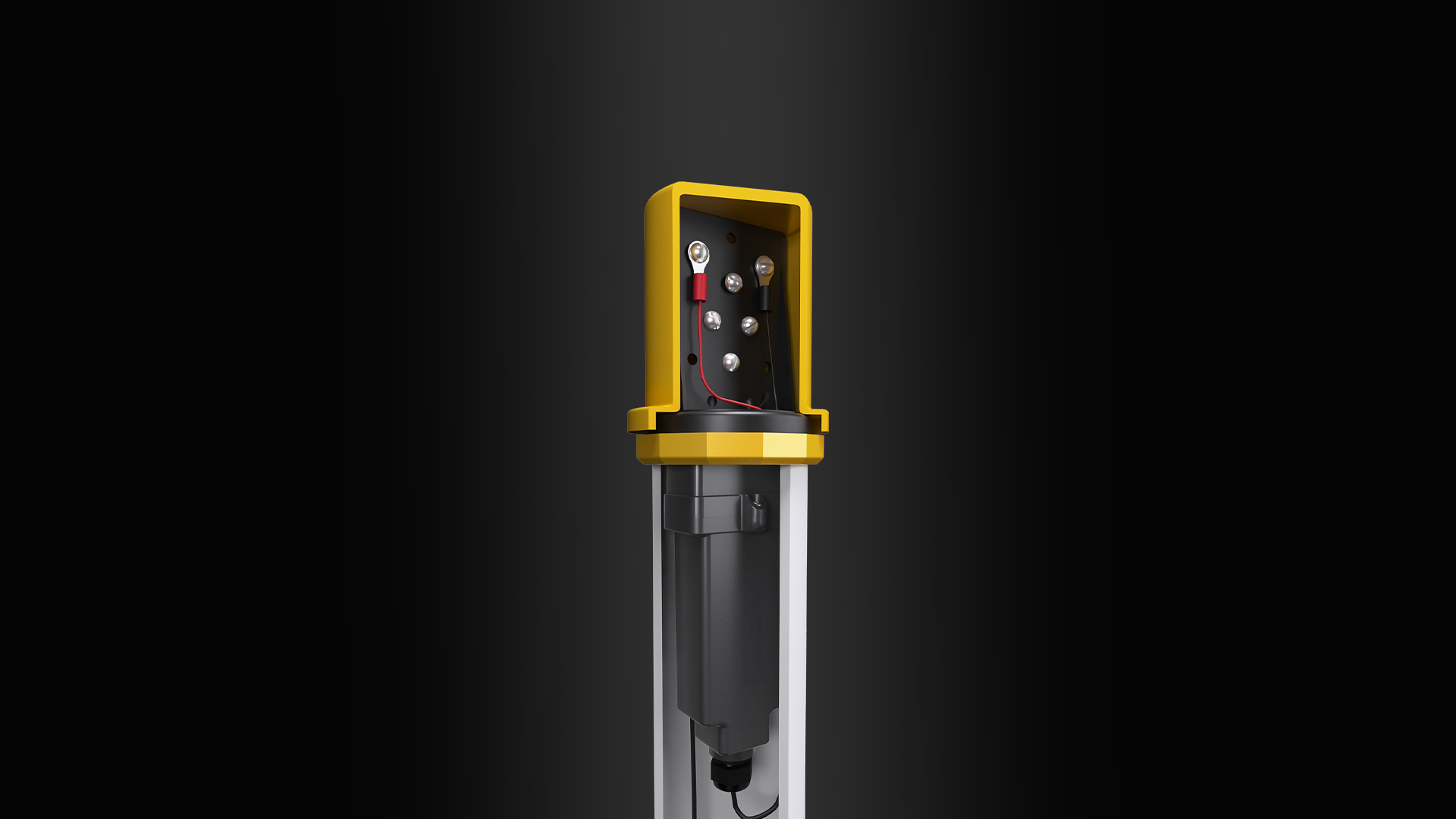

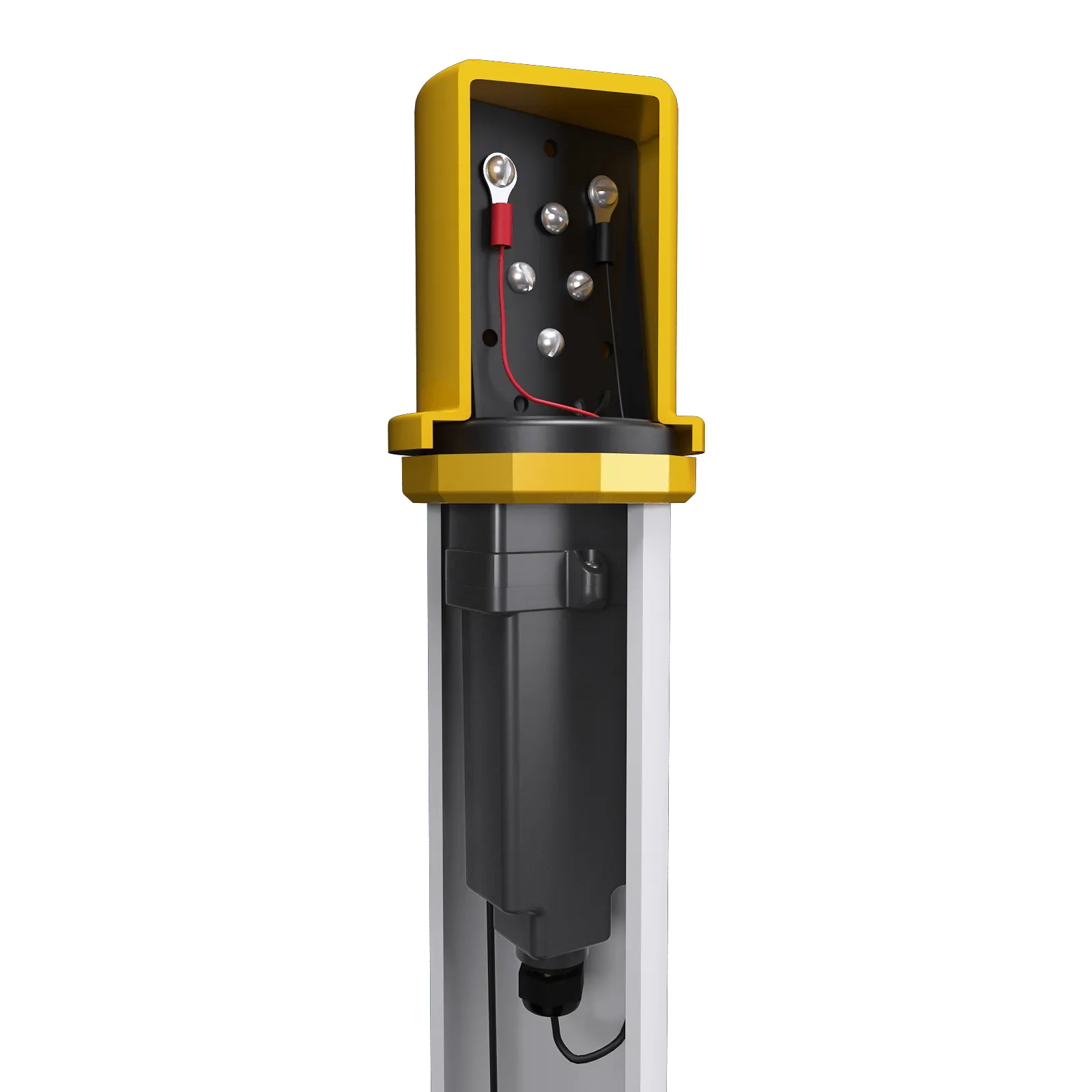

Final assembly render — device installed on a vertical pole with yellow head

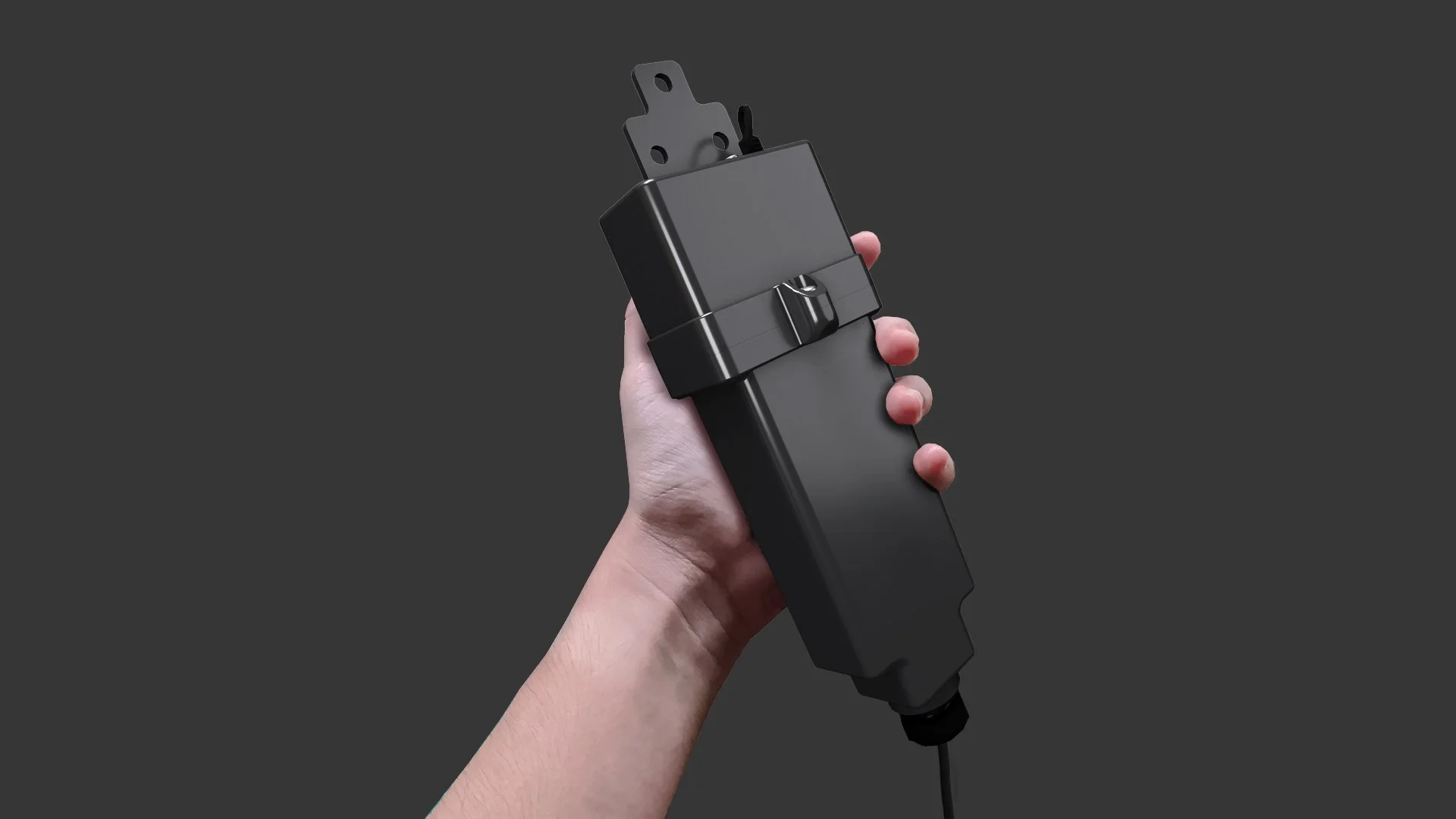

Final device held in hand showing scale and ergonomics
